IEPE Sensor Simulator

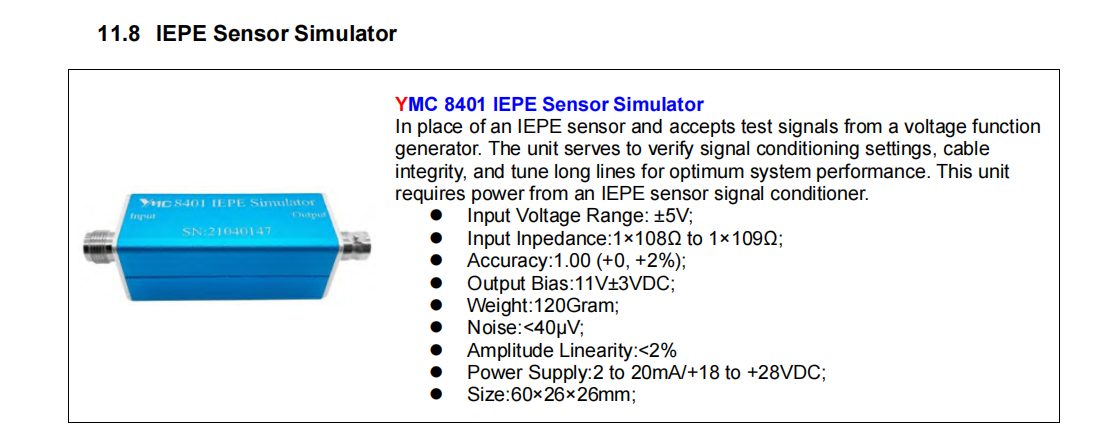

YMC 8401 IEPE Sensor Simulator
In place of an IEPE sensor and accepts test signals from a voltage function generator. The unit serves to verify signal conditioning settings, cable
integrity, and tune long lines for optimum system performance. This unit requires power from an IEPE sensor signal conditioner.
l Input Voltage Range: ±5V;
l Input Inpedance:1×108Ω to 1×109Ω;
l Accuracy:1.00 (+0, +2%);
l Output Bias:11V±3VDC;
l Weight:120Gram;
l Noise:<40μV;
l Amplitude Linearity:<2%
l Power Supply:2 to 20mA/+18 to +28VDC;
l Size:60×26×26mm;
